5mm 8mm 10mm L-Shaped COB LED Corner Connectors, 2/3/4Pin Seamless Splice Connectors for RGB CCT COB Light Strip, No Dark Area, 10PCS Per Pack

Name: 5mm 8mm 10mm L-Shaped COB LED Corner Connectors, 2/3/4Pin Seamless Splice Connectors for RGB CCT COB Light Strip, No Dark Area, 10PCS Per Pack
SKU: 1005009757084821
Availability: InStock

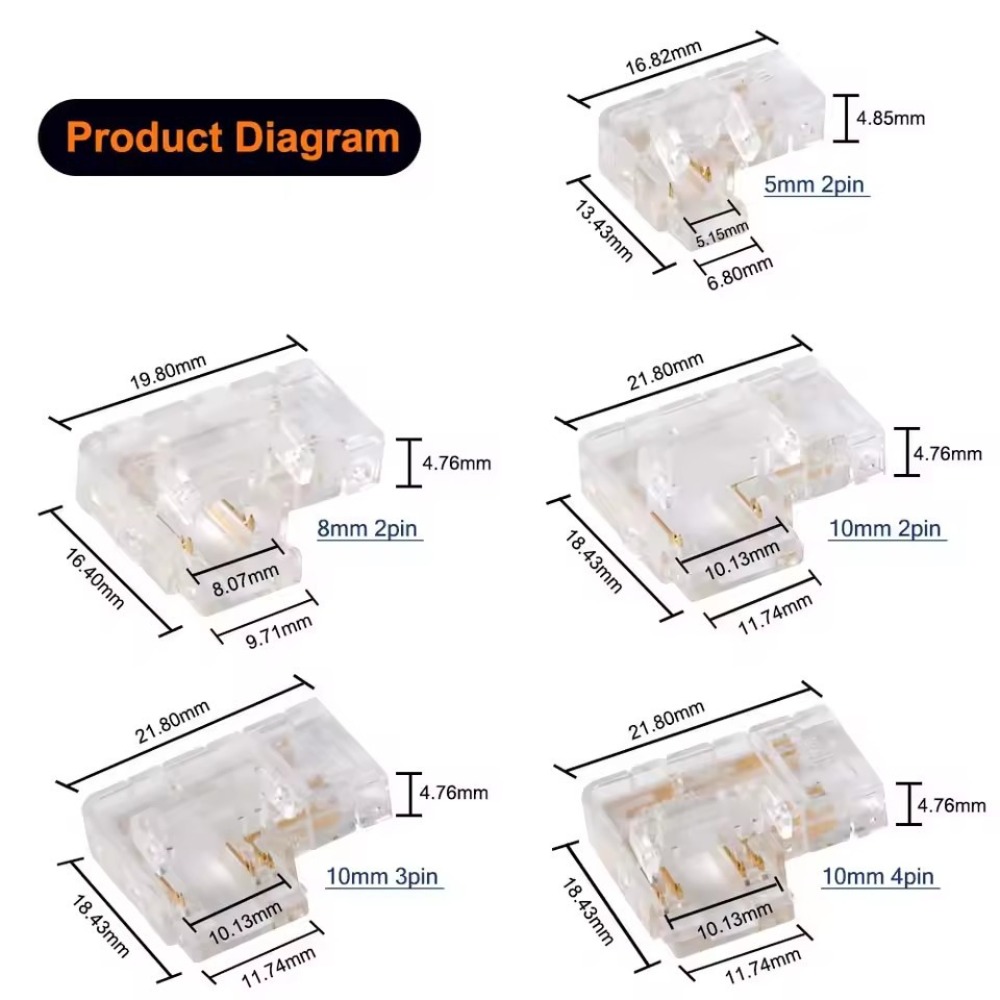

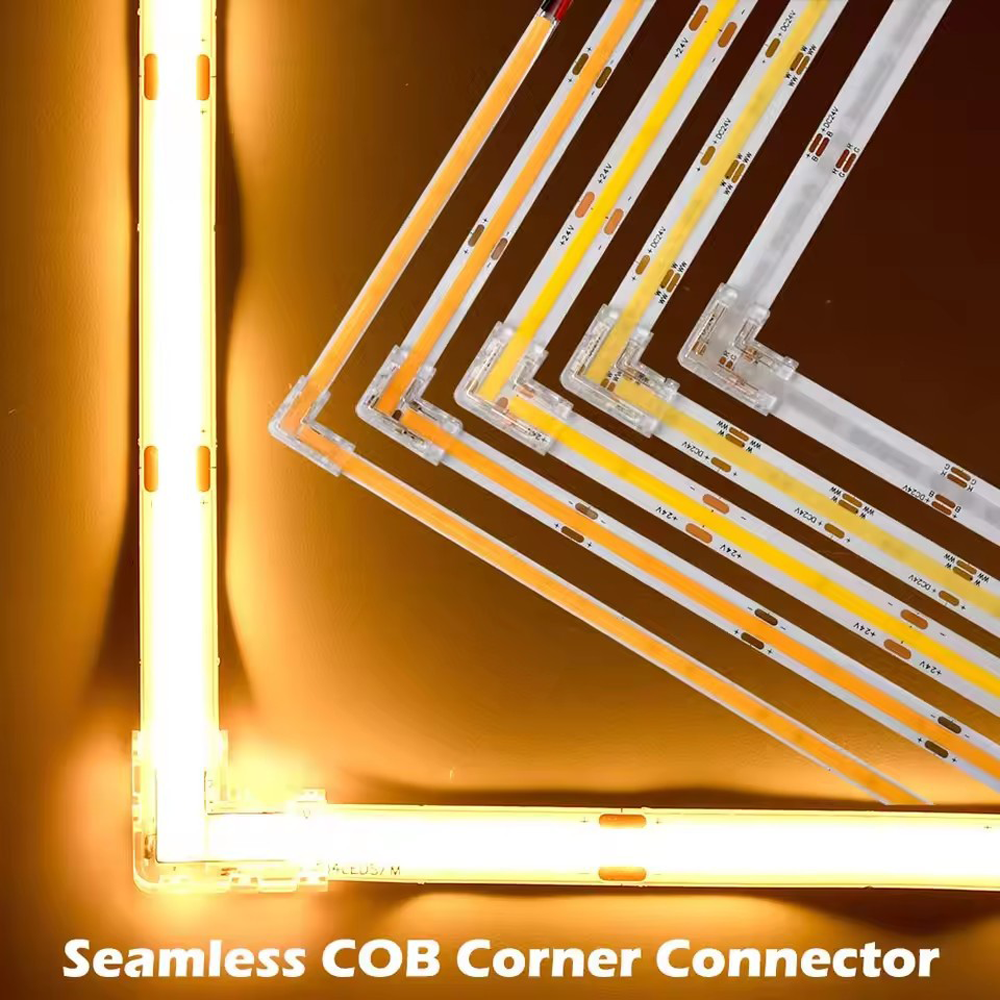

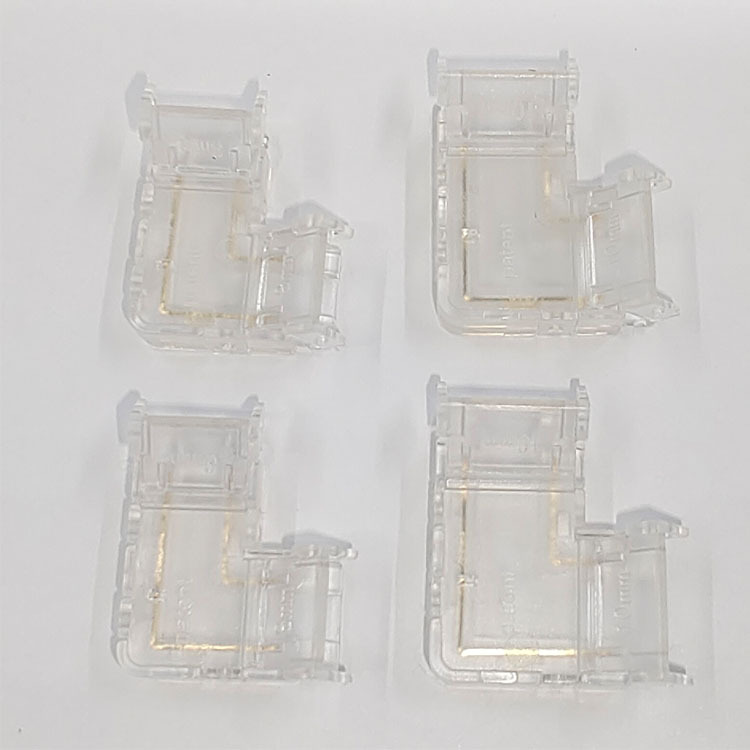

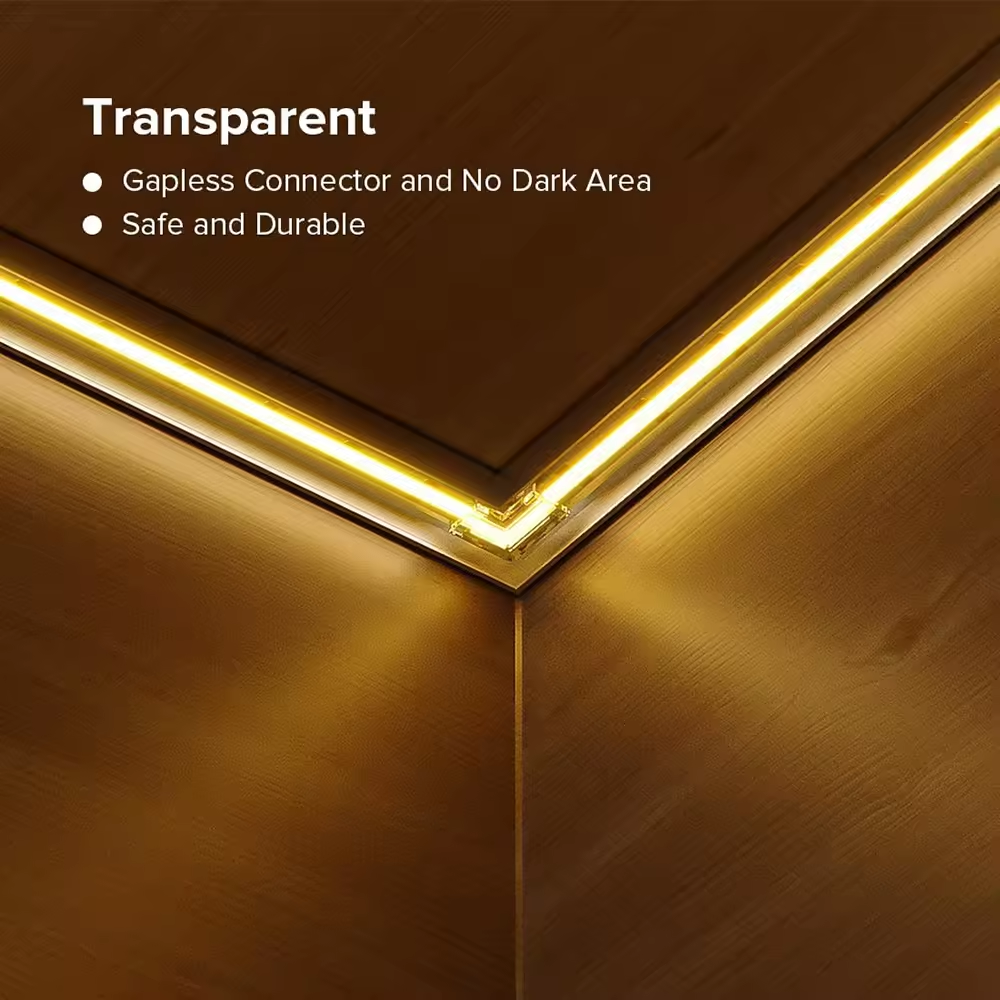

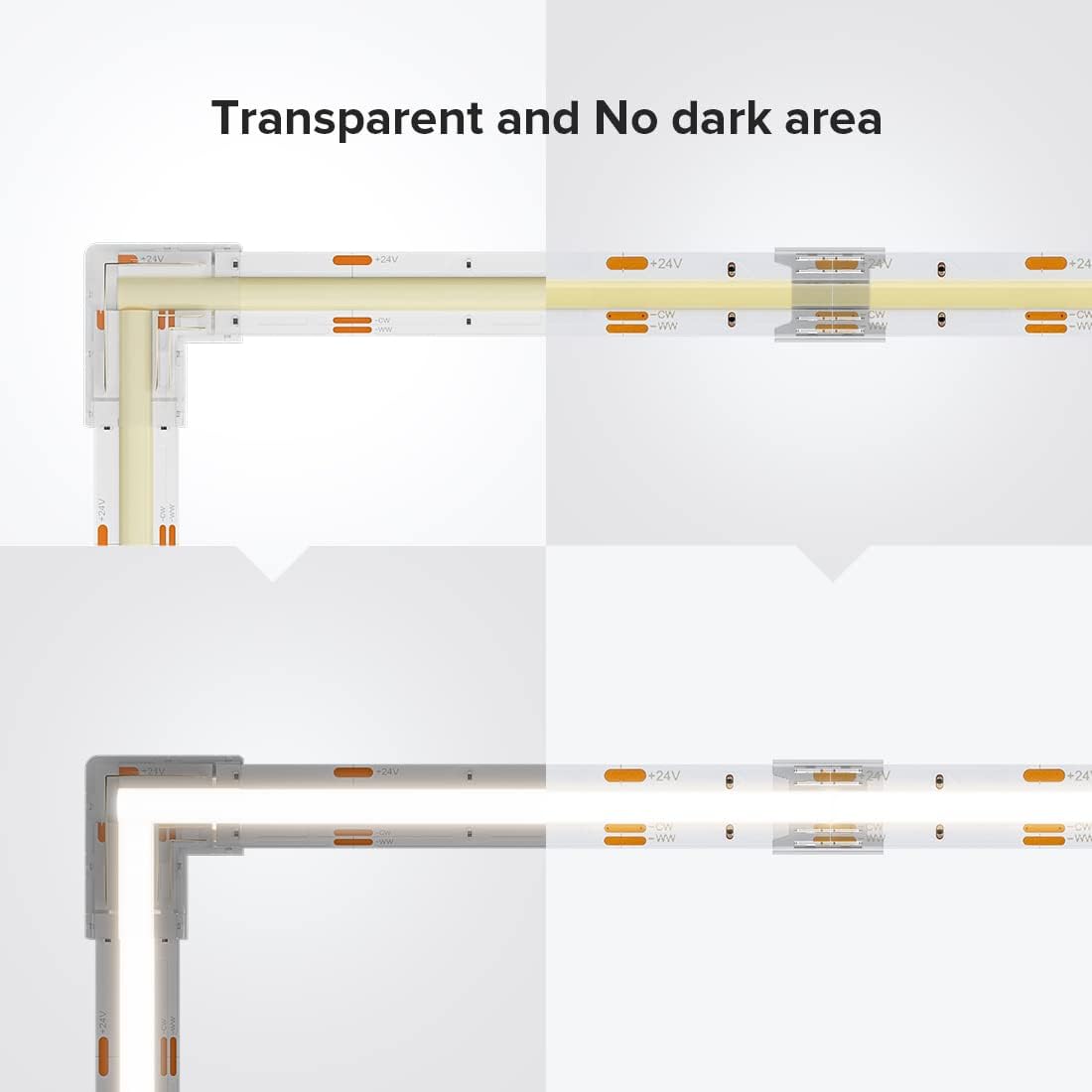

Seamless L-shaped corner connectors specially designed for COB LED strips. Available in 5mm,8mm,10mm PCB width with 2pin,3pin,4pin versions for RGB and CCT light strips. Perfect seamless splicing design eliminates dark areas at corners, easy to install. Each package contains 10 pieces.

Price range: $3.49 through $27.07

Color

Package Quantity

Clear

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Product Description

Pre-Purchase Guide
1. Check your LED strip’s PCB width, waterproof grade and working voltage to ensure compatibility before buying.

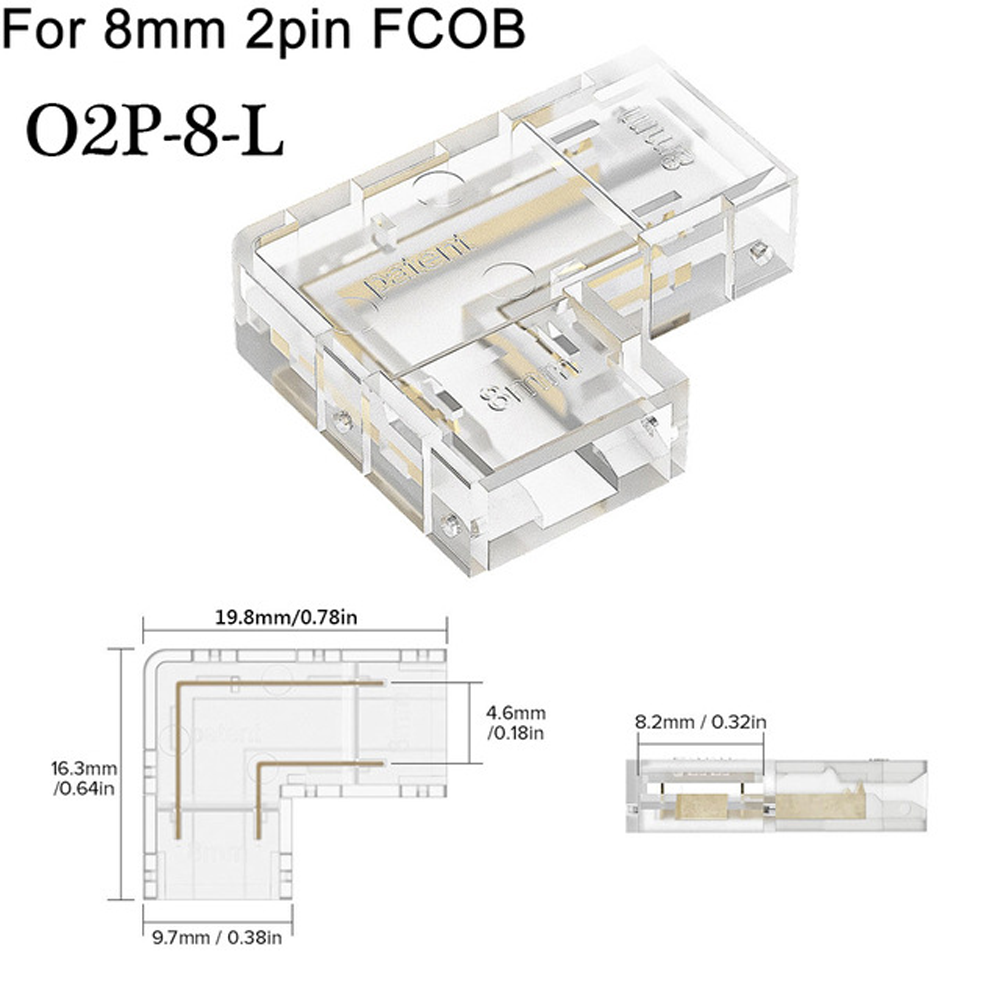

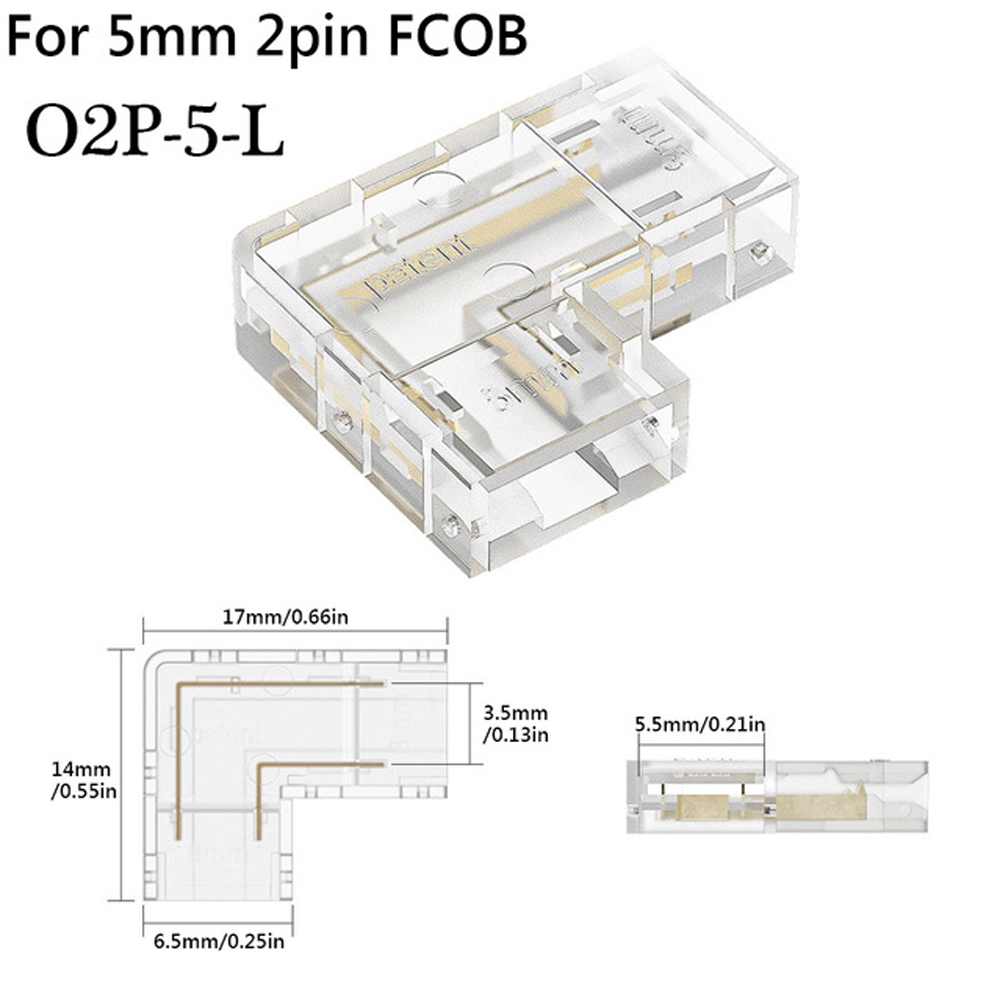

2. Connector size must fully match your strip width. An 8mm connector cannot work with 5mm or 10mm LED strips.
3. Only applicable to low-voltage DC 5–36V COB strips. Never use it on 110V/220V high-voltage light strips.

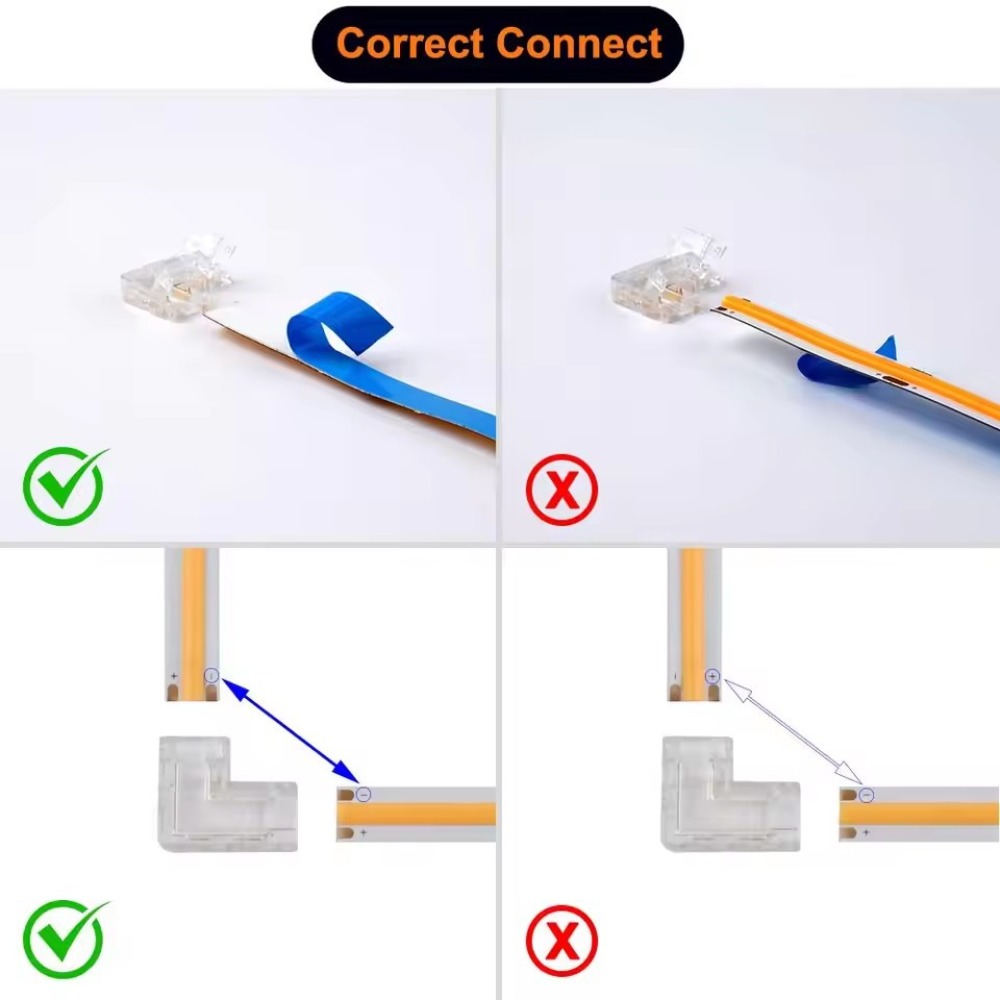

4. Tear off the protective release film on the LED strip’s back adhesive before installation.
5. Keep the positive (+) and negative (-) poles aligned on both sides of the connector to prevent reverse wiring.
6. Mount the strip with its adhesive back facing the plastic cover of the connector.
7. Only fit IP20 indoor non-waterproof LED strips.
8. Exclusively for COB light strips; incompatible with SMD LED strips.

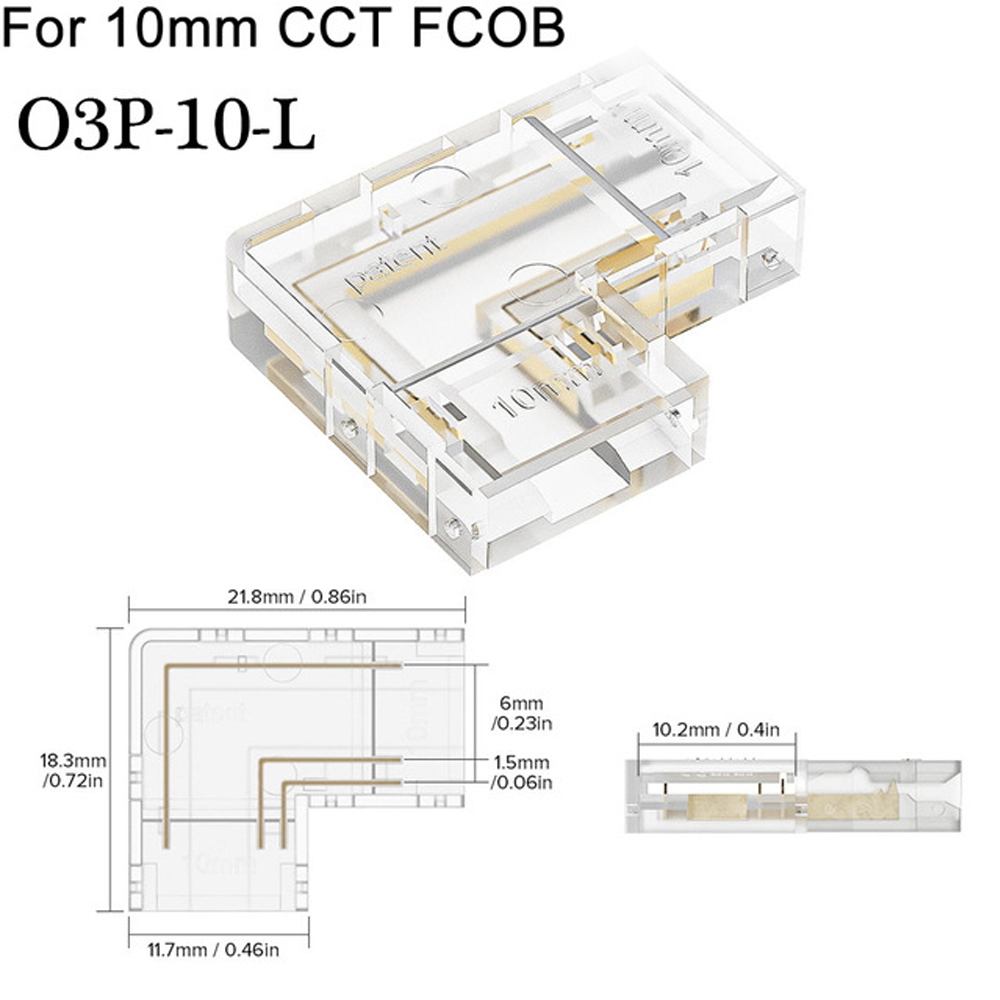

Important Note for 3-Pin Connectors

Our 3-pin connectors are only compatible with the 10mm CCT COB LED strips shown in product pictures:
- Strip feature: Two solder pads on one side, one solder pad on the other side
- If your CCT COB strip has solder pads in the middle of PCB, this 3-pin connector will not fit, please do not order.

Additional information

Color	2pin 5mm, 2pin 8mm, 2pin 10mm, 3pin 10mm, 4pin 10mm
Package Quantity	10PCS
